Product Overview

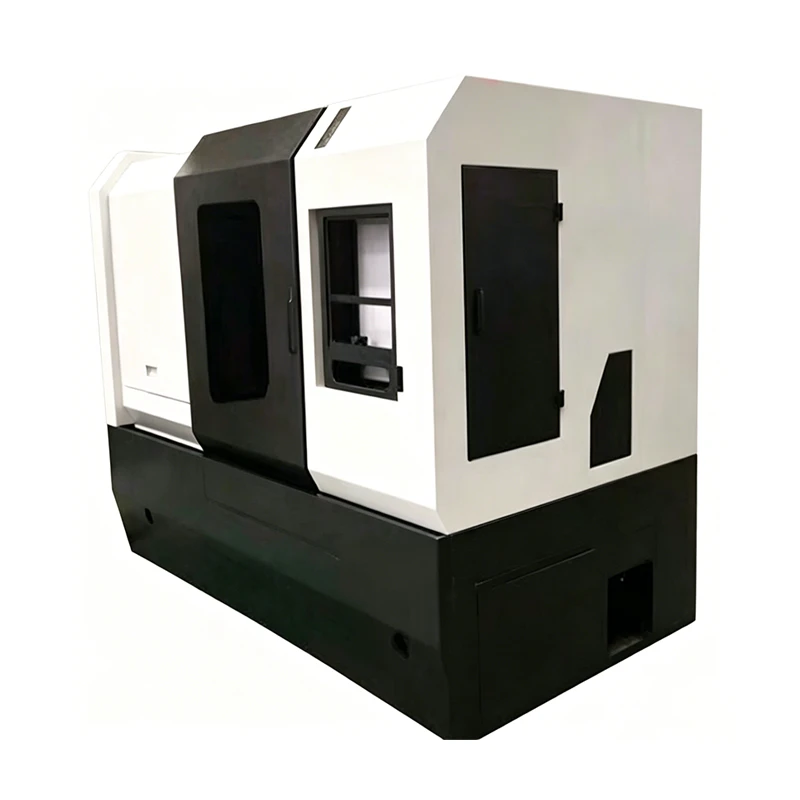

CNC Machine Tool Sheet Metal Guards are fabricated barriers fitted around selected machining areas and moving equipment zones. They are used on CNC machining centers, lathes and milling machines as localized panels or guard assemblies around the working area.

Core Advantages

1.5–3.0 mm Steel at the Machining Area
Cold-rolled steel and stainless steel options cover 1.5–3.0 mm sheet. Where a guard spans an opening beside the machining zone, the thicker specified section increases bending stiffness compared with the same panel shape in thinner stock.

Formed Returns Along Guard Edges
Drawing-defined return edges face the barrier around the protected zone. Where chips and splash travel across a panel toward its perimeter, these formed boundaries interrupt the direct path beyond the flat edge and guide material toward the intended collection area.

Joined Corners for Multi-Panel Guards
Robotic and hybrid welding join the specified guard sections. Where adjoining panels form a corner around the work area, a welded assembly reduces the number of overlapping separate panels that must be aligned during installation.

Technical Data Sheet

Parameter	Specification	Remarks
Product Types	Machine tool protective guards	Custom according to drawings
Size	Custom according to customer drawings	Various machine sizes
Material	Cold-rolled steel	Stainless steel optional
Thickness	1.5–3.0mm	Determined by requirements
Welding Process	Robotic welding / hybrid welding	Ensures structural strength
Surface Finish	Powder coating / baking paint	Anti-corrosion finish
Precision	±0.1mm	Standard guarantee
Warranty	12 months	Free repair for workmanship issues

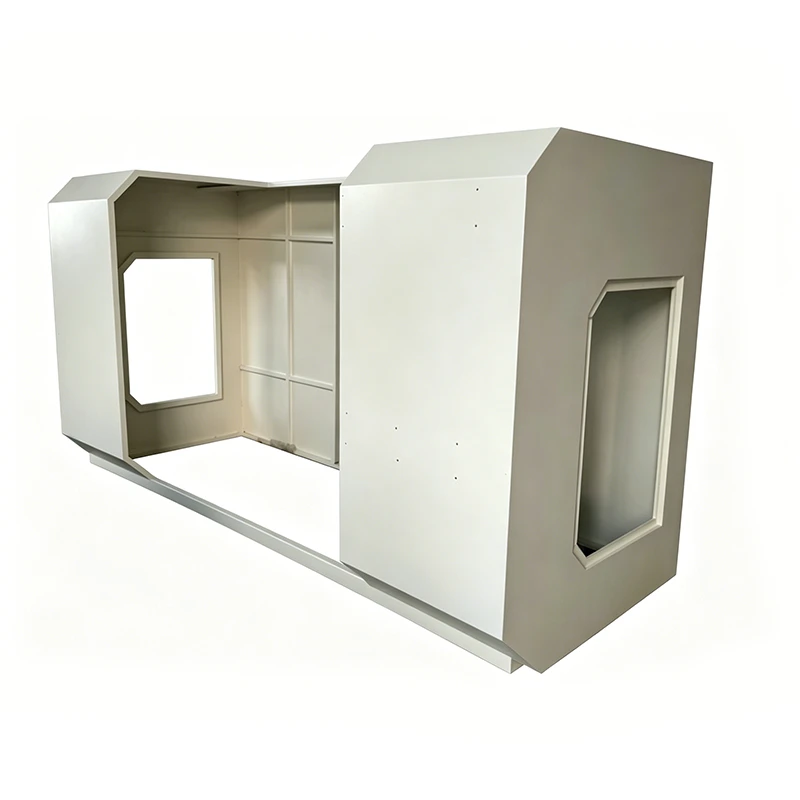

Custom CNC Machine Tool Sheet Metal Guards

We manufacture CNC Machine Tool Sheet Metal Guards from the approved machine envelope and guard drawings. Cut and formed components are fabricated to the specified fixed or removable arrangement, with surfaces finished after the joining operations.

Customizable Items

• Guard width, height and depth

• Machine fixing-hole pattern

• Service-access apertures

• Observation-window cutouts

• Interlock bracket mounting pattern

• Paint color and surface texture

Quality Control

Incoming sheet is checked before fabrication. First-article inspection verifies machine attachment references, adjoining-panel alignment and the dimensions of any specified observation-window opening.

In-process inspection checks joint appearance, distortion and accessible edge condition. Recorded defects are corrected and rechecked before the guard reaches finishing.

Each completed guard receives a pre-packing appearance and assembly-fit inspection. Calibrated measuring tools support the checks, and order-related quality records are retained.
