Product Overview

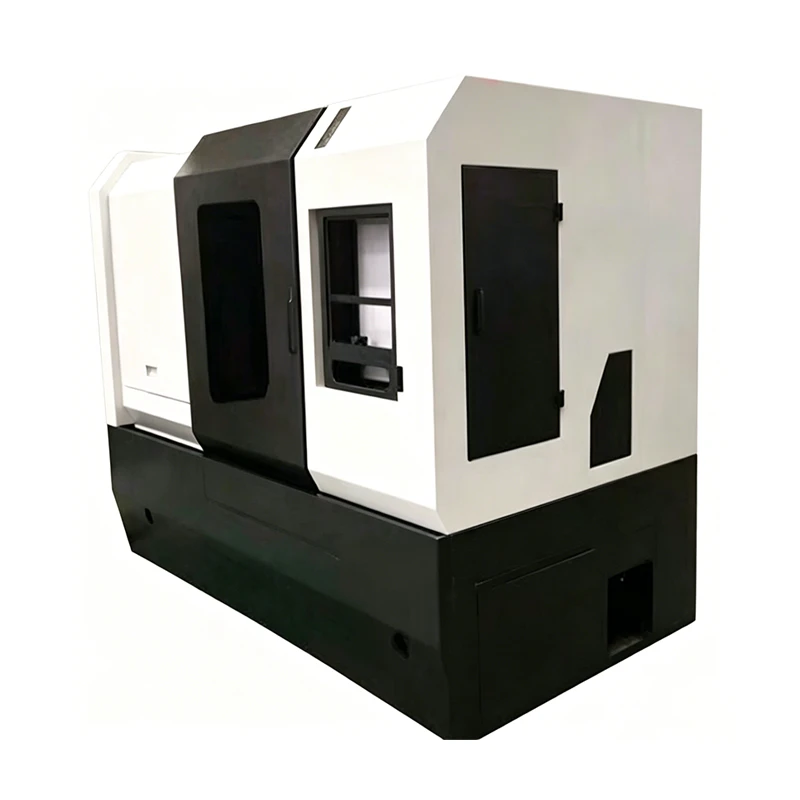

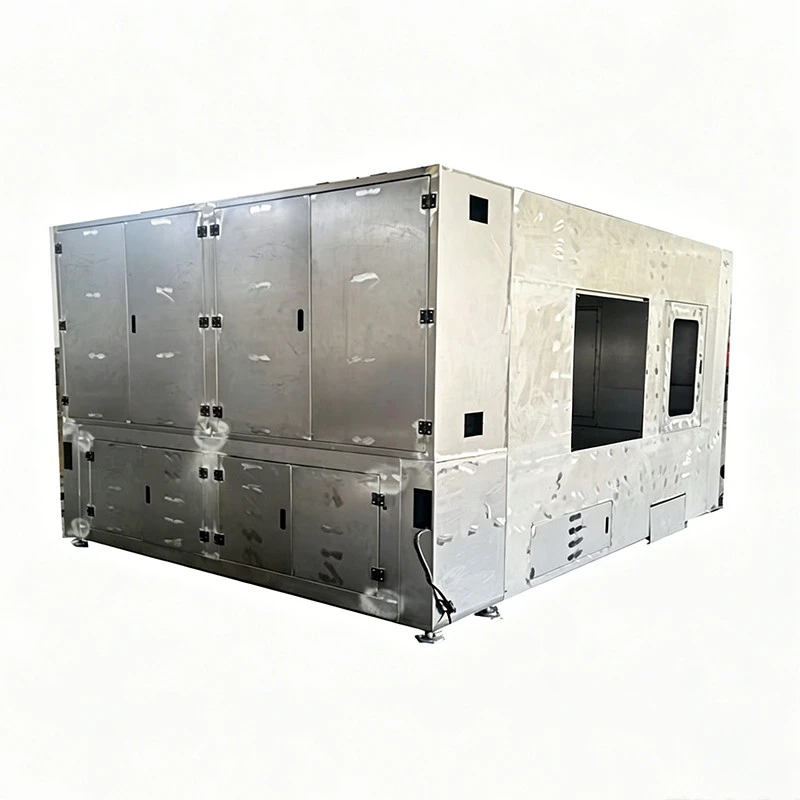

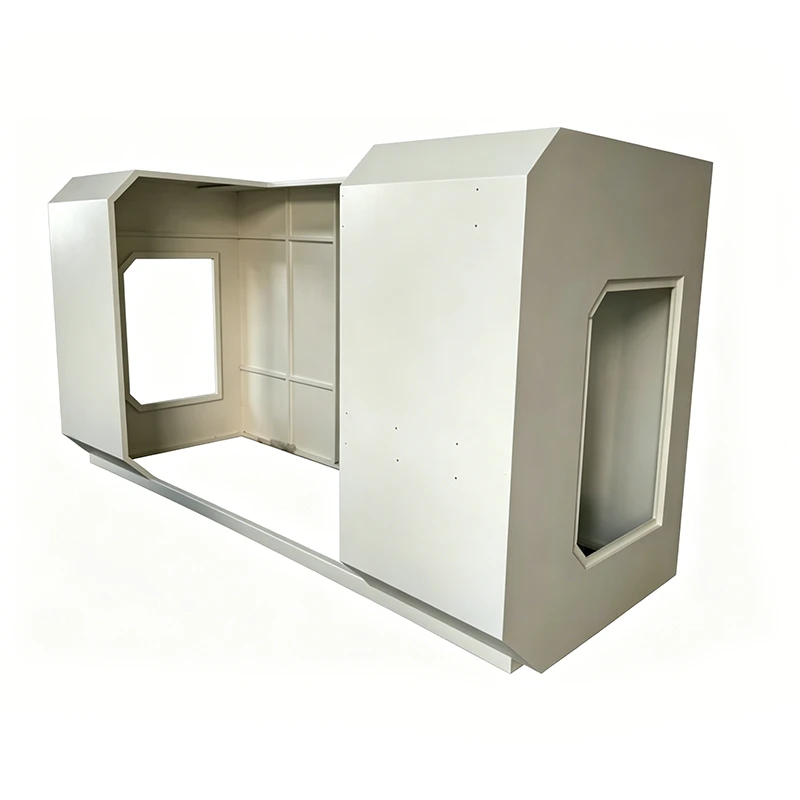

Machine Tool Sheet Metal Housings are complete exterior panel assemblies for machine tools. They form the main outer body around CNC machining equipment and combine machine-side panels, access doors and operator-interface areas within one enclosure arrangement.

Core Advantages

Coordinated Panels Around the Complete Machine
The housing is fabricated as a coordinated set of body panels and access sections. Where a machine has several adjoining faces, one defined enclosure arrangement aligns those interfaces instead of treating every cover as an unrelated component.

1.5–3.0 mm Sheet for Large Outer Faces
Cold-rolled steel and optional stainless steel are available in 1.5–3.0 mm thickness. For broad side panels spanning between machine supports, thicker specified sheet reduces bending at the same geometry and limits movement during handling and attachment.

Powder-Coated or Baked-Paint Exterior
Powder coating and baked paint provide the specified finish across the housing. Where an operator door sits beside fixed panels, a coordinated color and texture keep the assembled exterior consistent across separately fabricated sections.

Technical Data Sheet

Parameter	Specification	Remarks
Product Types	Complete housings, protective doors, panels, etc.	Custom according to drawings
Size	Custom according to customer drawings	Various machine sizes
Material	Cold-rolled steel	Stainless steel optional
Thickness	1.5–3.0mm	Determined by requirements
Welding Process	Robotic welding / hybrid welding	Ensures structural strength
Surface Finish	Powder coating / baking paint	Multiple colors available
Precision	±0.1mm	Standard guarantee
Warranty	12 months	Free repair for workmanship issues

Custom Machine Tool Sheet Metal Housings

We manufacture Machine Tool Sheet Metal Housings from the approved machine envelope and enclosure drawings. CNC-cut, formed and welded components follow the specified body arrangement for complete machine integration.

Customizable Items

• Overall housing dimensions

• Window apertures

• Cable and pipe entries

• Chip-conveyor interface cutouts

• Lighting-bracket fixing points

• Base-skirt geometry

Quality Control

Incoming-stock inspection precedes fabrication. First-article checks verify door-to-panel clearances, adjoining side-panel alignment and machine attachment references against the approved drawing.

In-process checks monitor weld appearance, corner distortion and formed-edge condition. Deviations are recorded and corrected before the affected components advance to the next stage.

Every finished housing receives an appearance and assembly-fit inspection before packing. Calibrated gauges are used for dimensional verification and quality records are retained.
