Product Overview

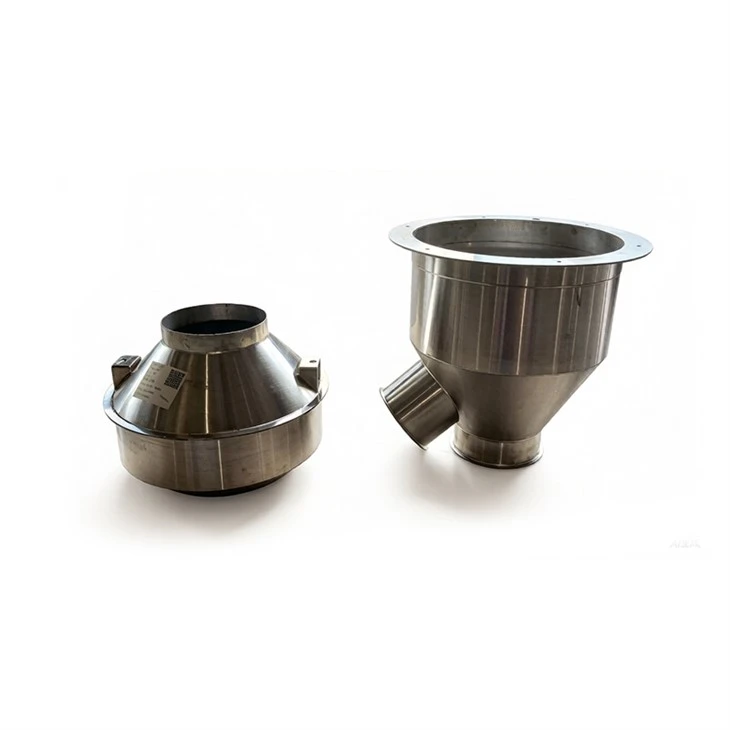

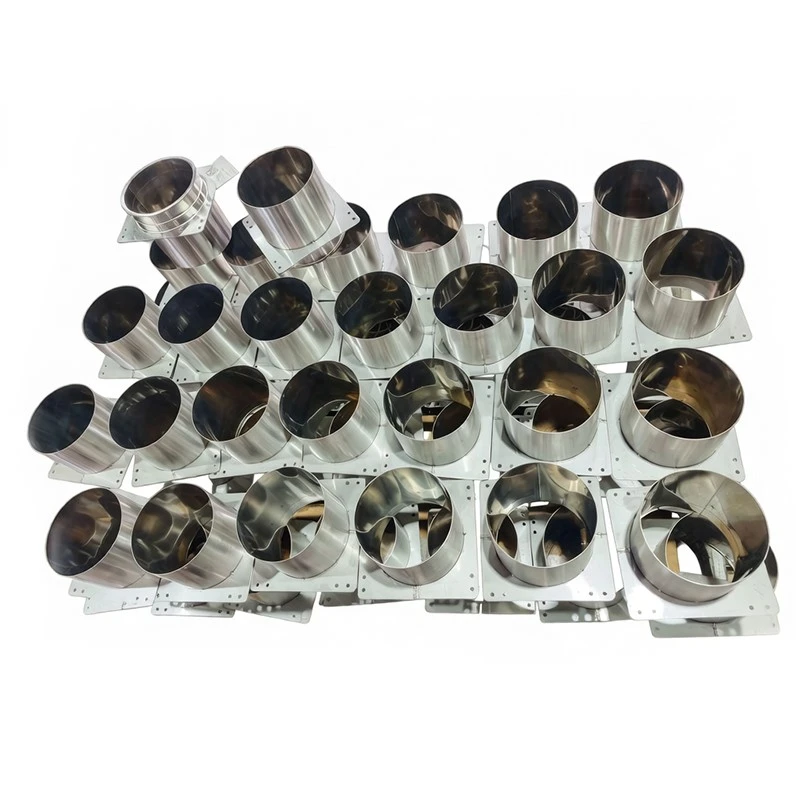

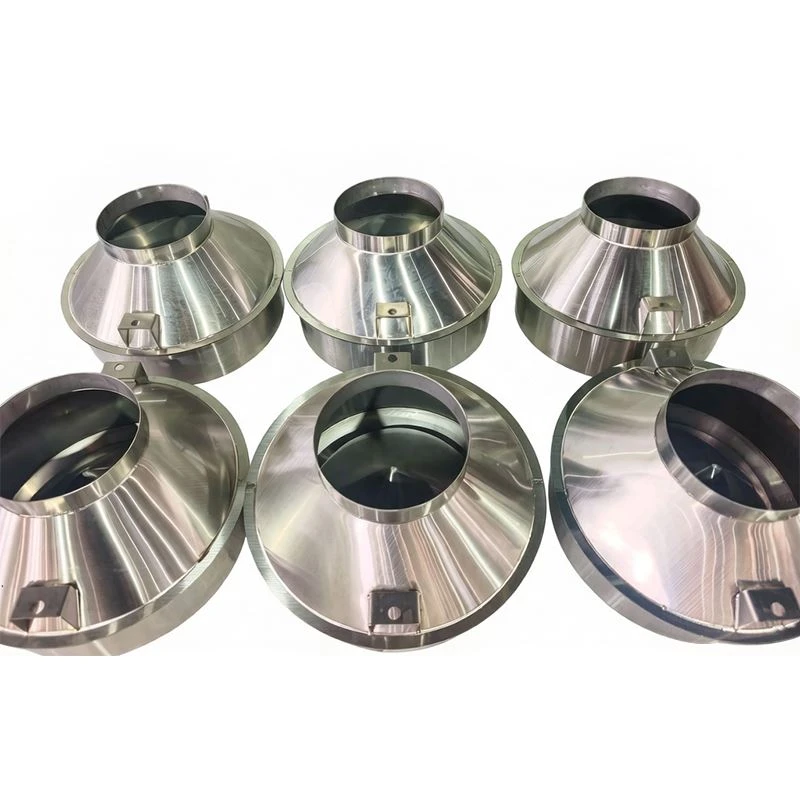

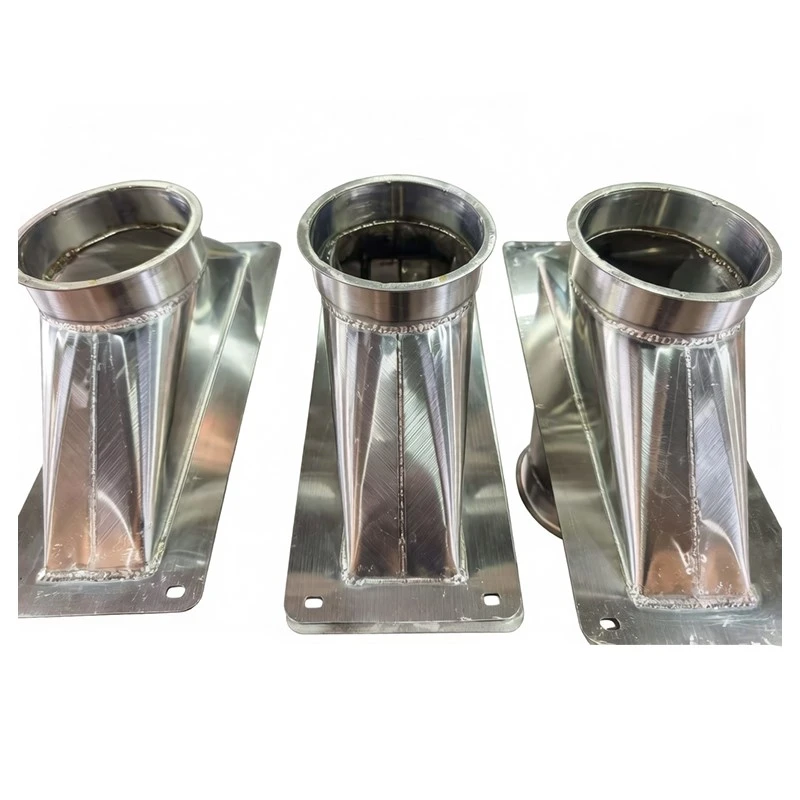

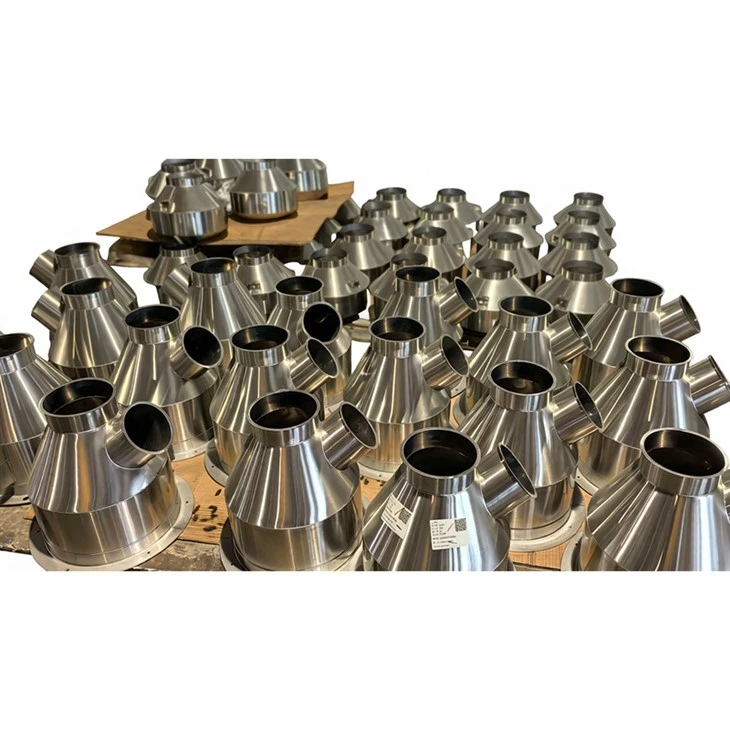

Special-shaped Sheet Metal Parts are fabricated components with non-rectangular profiles, curved panels or irregular formed geometry. They are used in machine housings, equipment interfaces and custom assemblies where a standard flat plate or rectangular bracket does not match the surrounding equipment.

Core Advantages

Profile Cutting Around Irregular Interfaces
CNC cutting follows the specified outer contour and internal openings. Where a component must fit around an existing machine profile, the cut geometry follows that interface rather than leaving a rectangular blank that requires hand trimming during assembly.

0.8–4.0 mm for Covers and Shaped Supports
Steel, stainless steel and aluminum are available in 0.8–4.0 mm sheet. Where an irregular part combines broad cover areas with narrow connection zones, the selected thickness balances enclosure mass with the section needed around those attachment points.

Formed Sections Through Changes in Direction
Multiple formed faces create the required transitions between differently oriented mounting surfaces. When adjacent equipment interfaces do not share a plane, the shaped component connects them without stacking separate flat spacers and brackets at each change in direction.

Technical Data Sheet

Parameter	Specification	Remarks
Product Types	Curved parts, irregular panels, custom structures	Made per your drawings
Size	Custom made to your specifications	Any shape possible
Material	Steel, stainless steel, aluminum, and more	Choose what you need
Thickness	0.8 – 4.0mm	Based on your needs
Surface Finish	Powder coating, galvanizing, anodizing, and more	Choose what you need
Precision	±0.1mm	Standard guarantee
Warranty	12 months	Covers all workmanship issues

Custom Special-shaped Sheet Metal Parts

We manufacture Special-shaped Sheet Metal Parts from the approved three-dimensional geometry and technical drawings. The cutting and forming sequence is arranged around the component's features, with welded assembly used where the design specifies joined pieces.

Customizable Items

• Reference datum locations

• Local edge radii

• Mounting-thread interfaces

• Drain and access slots

• Visible-face finish

• Part-identification positions

Quality Control

Incoming material is inspected before fabrication. First-article verification checks the drawing-defined reference geometry rather than accepting a part from overall length and width alone.

In-process checks monitor local distortion, edge condition and alignment between formed faces. Recorded nonconformities are corrected and re-inspected before the next operation.

Every finished part receives an appearance and assembly-fit check before packing. Gauges are calibrated regularly, and quality records remain linked to the applicable order.
