Intelligent CNC Drill and Tap Machine

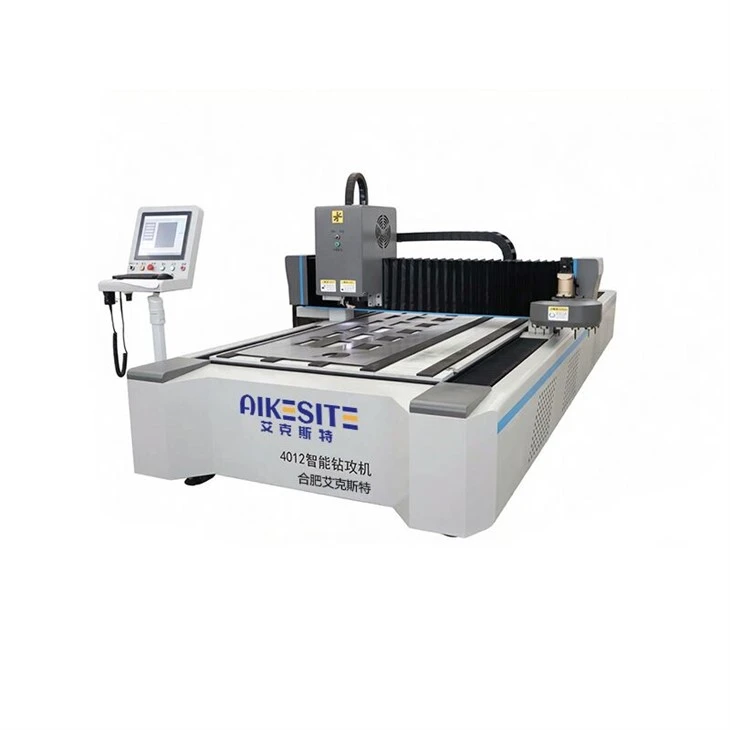

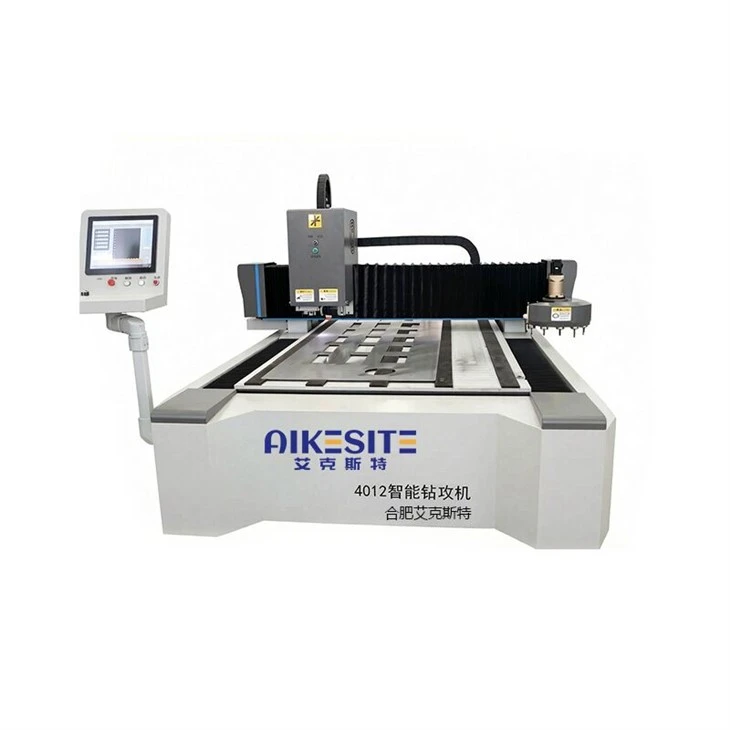

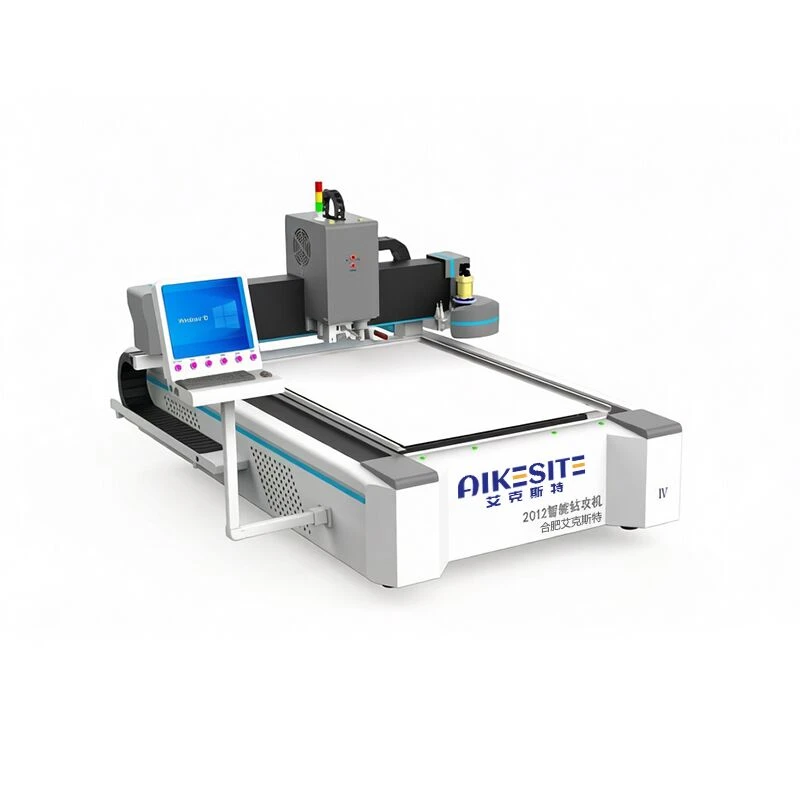

We are a sheet metal factory with 19 years of experience. Our company is Hefei Acxt Power Technology Co., Ltd. Our factory covers 20,000 square meters and employs 150 technical staff members. We have independently developed and manufactured an intelligent CNC drill and tap machine. Our machine is specifically designed for sheet metal and plate processing. It is suitable for drilling, tapping, and milling operations. It can also be integrated into automated unmanned production lines. Our main model is the 1220-A. The machine dimensions are 3470×2990×1750mm. The worktable size is 2000×1250mm. The Z-axis stroke is 200mm.

This intelligent CNC drill and tap machine is very easy to operate. No programming skills are required. You simply import your drawings directly and start processing. The machine is equipped with a laser positioning system and an automatic edge detection function. It automatically detects the edge of the sheet. All models come standard with a 12-station tool magazine and support automatic tool changes, enabling continuous processing without manual intervention.

The machine provides multiple processing modes. The multi-plate mode is suitable for medium-sized workpieces and supports simultaneous processing of multiple sheets. The fixture mode is suitable for small-batch parts and provides excellent stability. For large workpieces, optional loading and unloading robots can be selected to enable fully unmanned operation.

The machining precision of this intelligent CNC drill and tap machine reaches ±0.05mm, and the repeat positioning precision reaches ±0.02mm. The maximum carbon steel processing thickness is 12mm, while stainless steel reaches 10mm. Tapping specifications cover M2.5 to M10. The machine net weight is approximately 2.1 tons. Its rigid structure effectively reduces vibration during processing.

We offer a full range of machine models. The A series supports drilling and tapping with automatic tool change and automatic edge detection. The X series supports drilling, tapping, and milling. The C series is a basic economy model. All series support non-standard worktable sizes. Our products are widely used in sheet metal workshops. We provide high-precision intelligent solutions for customers worldwide. Our after-sales team responds within 24 hours. We offer a 12-month warranty on the complete machine.
