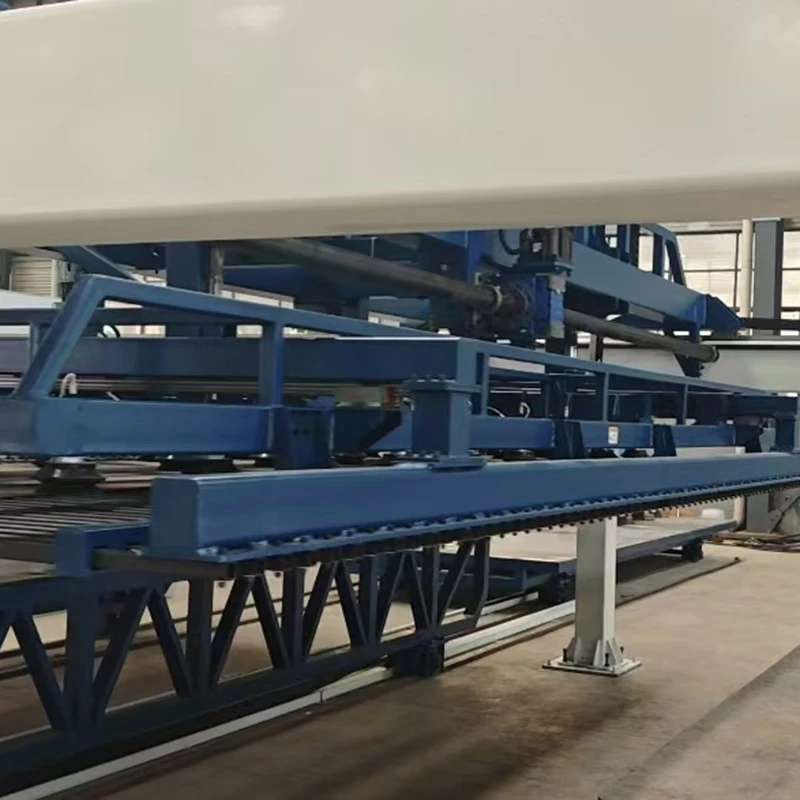

Product Overview

An auto loading unloading machine is a material-handling system that transfers sheet metal into and out of processing equipment. It is used with CNC drill and tap machines and laser cutting lines in fabrication plants, including production cells connected to automated sheet storage.

Key Features

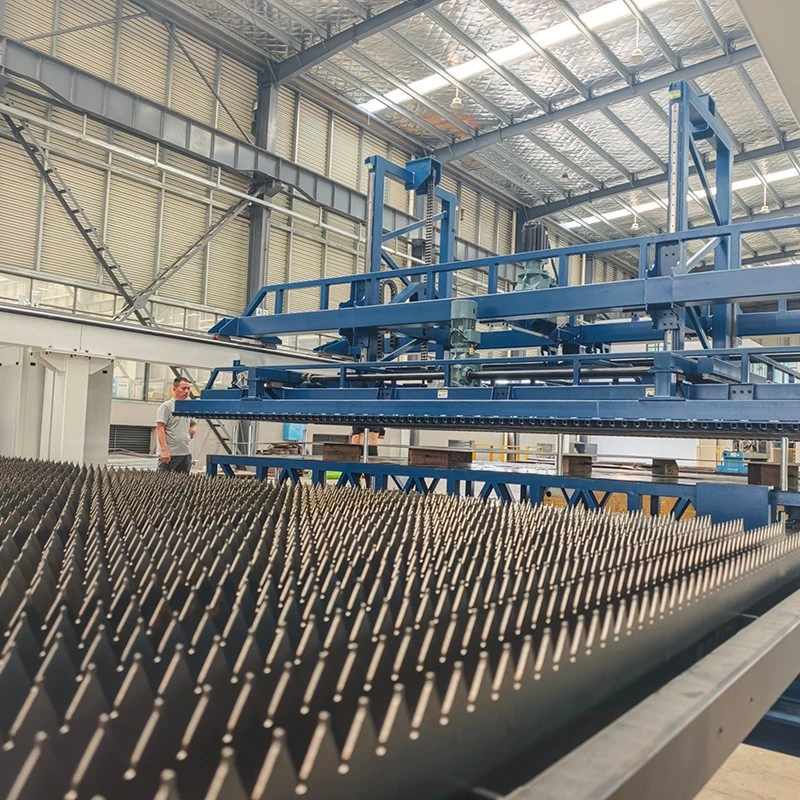

Full-Sheet Handling in 3000–8000 mm Lengths
Sheet-format configurations cover 3000 × 1500 mm, 4000 × 2000 mm, 6000 × 2500 mm and 8000 × 2500 mm. Where long sheets must move from the loading position to the processing station, the format-matched system transfers the workpiece as a sheet. Operators no longer need to carry and guide its edges manually through each loading move.

0.5–50 mm Coverage Across Sheet and Plate Configurations
The 0.5–50 mm range is covered by application-specific sheet and plate configurations. Thin panels require support against flex during transfer; thick plate increases the load carried through the handling structure. Matching the build to those conditions keeps flexible sheets supported and routes heavier plate through a configuration intended for that duty.

Suction or Mechanical Grip to Suit the Sheet Surface

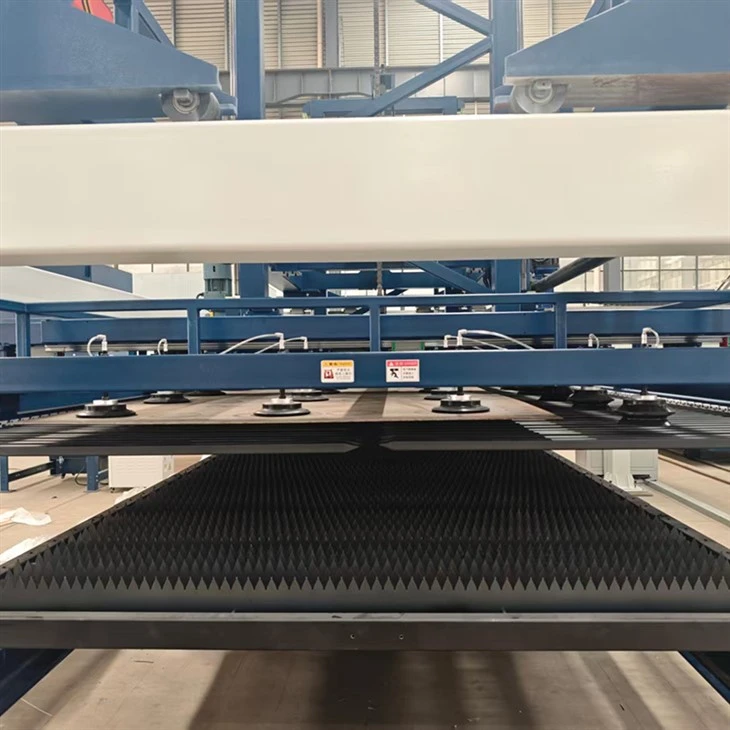

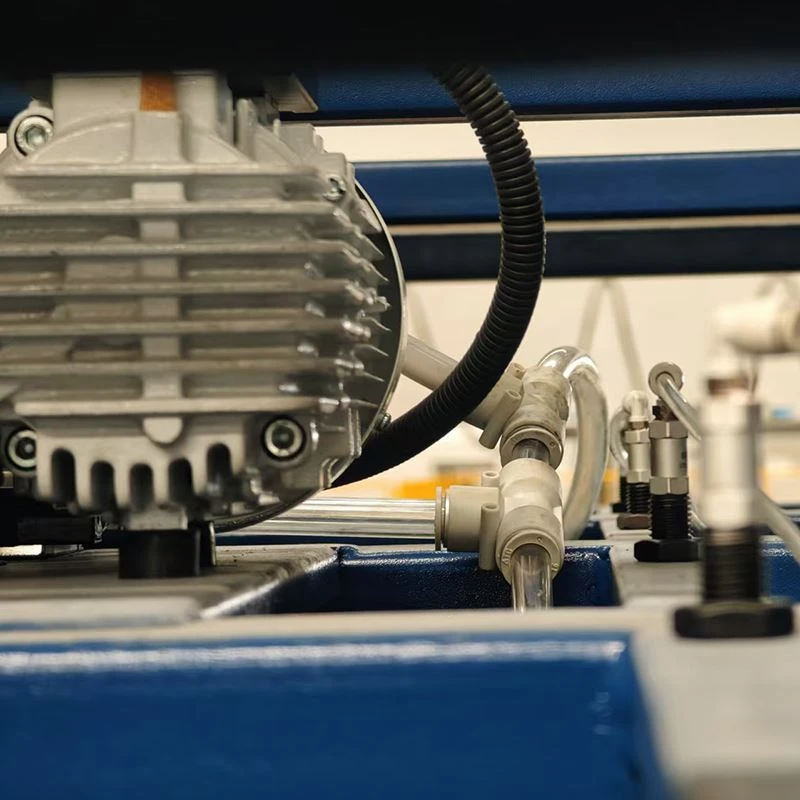

Automatic suction uses a continuous sealing area to pick up the sheet; mechanical clamping secures a suitable workpiece by direct grip. When a sheet surface cannot provide the sealing area required for suction, a clamping configuration provides a mechanical holding method. Transfer relies on the available gripping surface rather than an unsuitable suction seal.

Automatic Sheet Exchange Between Processing Cycles
Coordinated loading and unloading removes completed work and introduces the next sheet in the production sequence. During repeated sheet jobs, each exchange proceeds without an operator performing a separate lift-and-place operation at the machine. The handling cycle no longer depends on personnel being available to move material every time processing finishes.

Technical Data Sheet

Parameter	Specification	Remarks
Sheet Length Range	3000–8000mm	Multiple specifications available
Sheet Width Range	1500–2500mm	Multiple specifications available
Sheet Thickness Range	0.5–50mm	Full coverage
Loading/Unloading Method	Automatic suction / clamping	Selected based on sheet type
Compatible Equipment	Drill and tap machines, laser cutters, etc.	Integratable
Automation Level	Fully automated unmanned operation	Can operate 24/7
Customization Service	Supported	Designed based on production line needs
Warranty	12 months	Free repair for workmanship issues

Custom Auto Loading Unloading Machine

We design the auto loading unloading machine around your workpiece specification, receiving machine and production-line layout. The approved solution defines the equipment arrangement and transfer interfaces, with services covering planning, installation and commissioning.

Customizable Items

• Maximum workpiece mass requirement

• Pick-up and discharge positions

• Loading-stack height

• Unloading-stack arrangement

• Transfer travel and handover height

• Gripper contact-point layout

• Machine-side mechanical interfaces

• Storage-side connection arrangement

Quality Control

Incoming materials and fabricated handling-system components are inspected before assembly. First-article and in-process checks control part dimensions, joining accuracy and mechanical fit against the approved drawings.

Pre-packing checks cover completed appearance and assembly fit. Inspection records are retained, measuring tools are calibrated regularly and identified defects are corrected before release.

Third-party factory inspection is accepted. Nonconforming work is tracked through documented corrective action, with the inspection record retaining the result of each correction.
