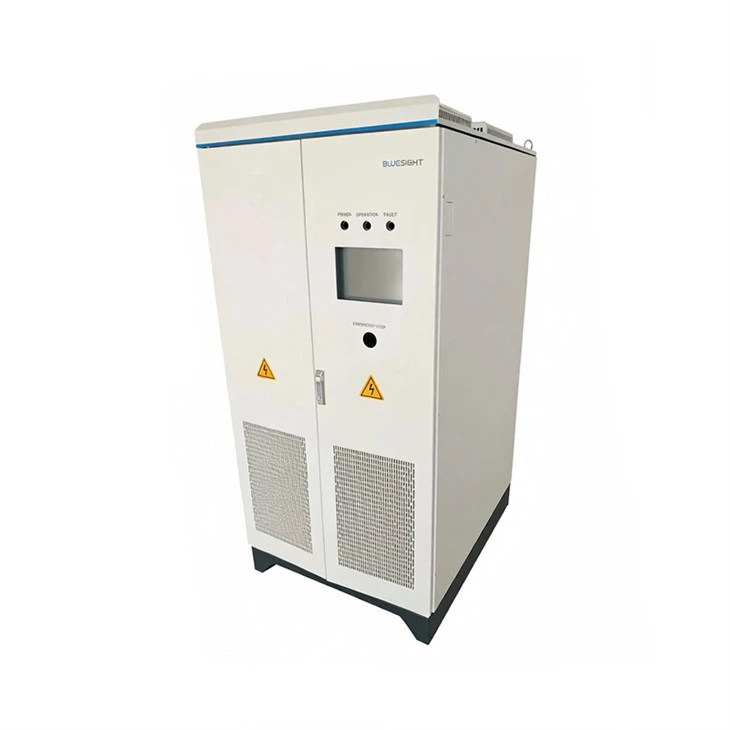

Product Overview

This cabinet houses programmable controllers, input/output modules, power supplies and associated control equipment. It is used in machine-control systems, process automation panels and production-line electrical assemblies where the control hardware is installed within a dedicated floor-standing cabinet.

Key Features

More I/O layout width without a deeper cabinet

The 800 × 600 × 2000 and 1000 × 600 × 2000 mm models retain the same depth and height. Moving to the wider body adds 200 mm of overall width for longer I/O and terminal arrangements without pushing the cabinet farther into the service aisle. Larger assemblies use 1000 × 800 × 2200 or 1200 × 800 × 2200 mm formats.

Split doors with a smaller individual opening sweep

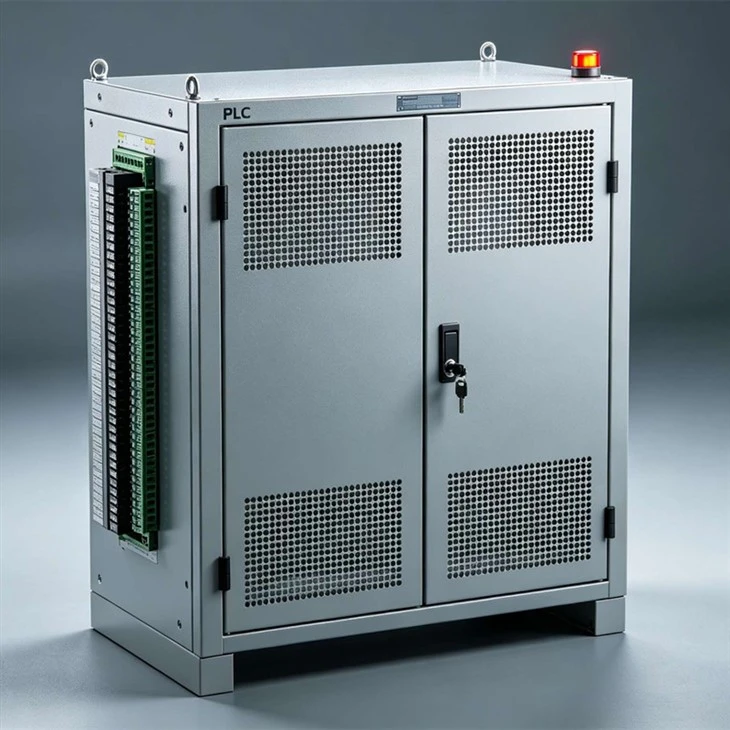

The split-door configuration divides the front into two narrower leaves. In a service aisle with limited space opposite the PLC cabinet, each leaf sweeps a smaller radius than a single full-width door. Technicians can open the required side during commissioning without swinging one large panel across the whole aisle.

A dust-protected housing for PLC electronics

The 1.5–2.0 mm cold-rolled steel body has a RAL 7035 powder-coated exterior and IP43–IP54 protection options. Beside a process that releases airborne particles, the IP54 configuration restricts dust entry into the closed PLC compartment. It adds a dust-protection classification absent from IP43, shielding the control assembly between access periods.

Technical Data Sheet

Parameter	Specification	Remarks
Small/Medium Cabinet Size	800×600×2000mm	Non-standard sizes supported
Multi-Axis Drive Cabinet Size	1000×600×2000, 1000×800×2200mm	Non-standard sizes supported
Large Integrated Cabinet Size	1200×800×2200mm	Non-standard sizes supported
Material	Cold-rolled steel	Other materials negotiable
Thickness	1.5–2.0mm	Adjustable
Surface Finish	RAL7035 powder coating	Other colors available
Protection Rating	IP43–IP54	Customizable
Warranty	12 months	Free repair for workmanship issues

Customization

We build the enclosure from your control-panel arrangement and mechanical interface drawings. The approved layout is translated into fabricated panels and installation features through cutting, bending, welding and finishing, with the cabinet geometry coordinated around the components named in the project.

Customizable Items

• Backplate mounting coordinates

• PLC and I/O rail locations

• Terminal-strip support brackets

• Cable-duct fixing holes

• HMI and indicator cutouts

• Door handing and latch pattern

• Fan or cooler mounting apertures

• Grounding-stud positions

Quality Control

Material inspection precedes cutting. First-article checks establish the body geometry and mounting datums so the installation features are measured from the same approved references throughout the order.

Production checks monitor panel alignment and weld accuracy. During assembly, the fit of mounting parts and opening panels is checked for interference; the finished surfaces are examined for visible defects before release inspection.

Each cabinet receives a final appearance and mechanical-fit inspection before packing. Calibrated measuring tools support the dimensional checks, process records are retained, and nonconforming features are corrected and verified before dispatch.
