Product Overview

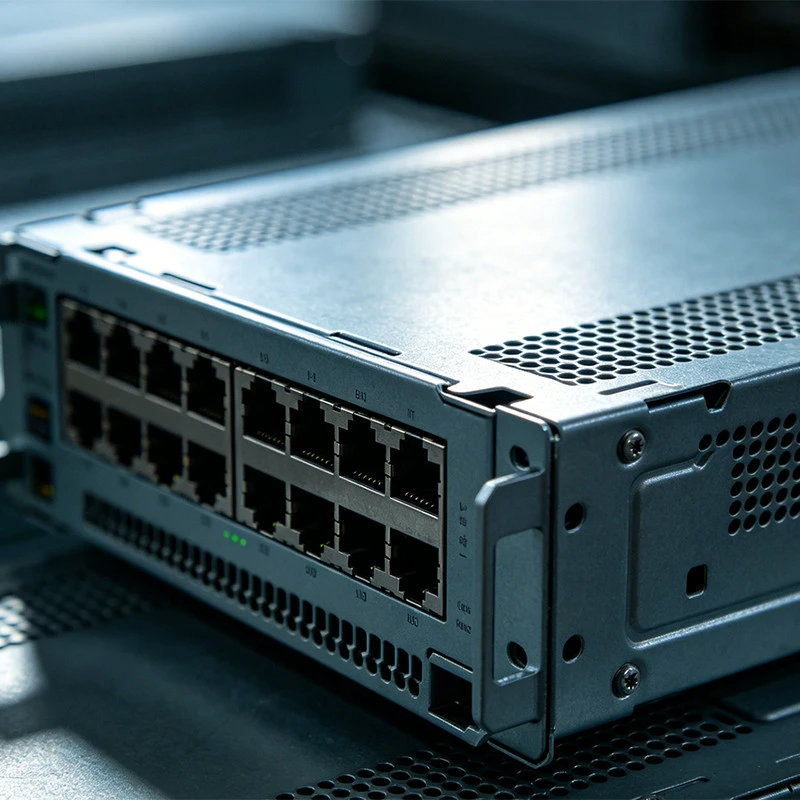

A Core Switch Chassis is a sheet metal housing for switch electronics, network connections and related control hardware. It is used in communications equipment, network switching assemblies and equipment-level network installations where the electronics are integrated into a dedicated metal body.

Core Advantages

Compact Bodies for Embedded Network Equipment
Body options include 140 × 100 × 50 mm, 200 × 140 × 60 mm and 260 × 160 × 85 mm, in width × depth × height. Where a network assembly sits inside another machine, these formats keep the enclosure envelope clearly defined for mechanical integration.

0.8–1.2 mm Panels Around Dense Connections
Steel, galvanized steel and aluminum options cover 0.8–1.2 mm sheet. When several connector openings occupy one face, the specified panel gauge balances remaining wall stiffness against the available space around the board and port hardware.

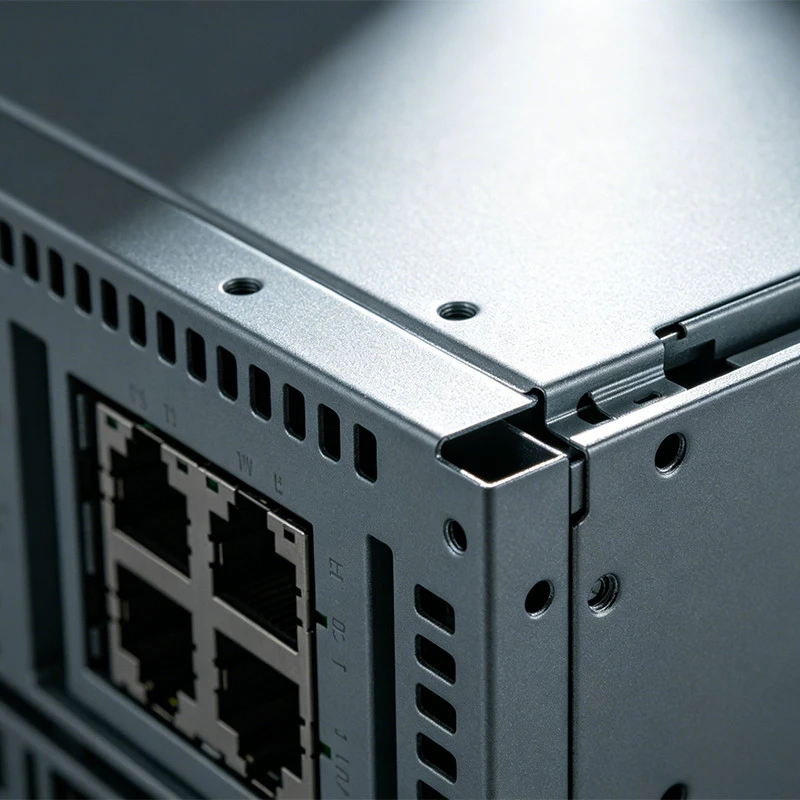

Port Legends at the Connection Face
Silkscreened port identifiers place the connection map on the enclosure itself. During repeated cable changes or equipment servicing, visible labels distinguish neighboring connections without requiring a separate numbered overlay on each cable.

Technical Data Sheet

Parameter	Specification	Remarks
Common Sizes (W×D×H)	140×100×50, 200×140×60, 260×160×85mm	Non-standard sizes supported
Material	Cold-rolled steel, galvanized steel, aluminum	Other materials negotiable
Thickness	0.8–1.2mm	Adjustable
Surface Finish	Powder coating / silk-screen printing	Custom colors and logos available
Protection Rating	IP30–IP54	Customizable
Precision	±0.05mm	For precise assembly
Warranty	12 months	Free repair for workmanship issues

Custom Core Switch Chassis

We produce Core Switch Chassis assemblies from the approved board outline, connector arrangement and mechanical drawing. CNC cutting and bending create the panel geometry before assembly and the specified finishing operations.

Customizable Items

• Internal divider geometry

• Power-entry openings

• Cooling-slot layout

• Cover attachment pattern

• Wall-fixing tabs

• Grounding-stud positions

Quality Control

Incoming material is checked before processing. First-article inspection verifies connector-opening pitch and alignment with the board-mounting references, with results recorded against the released drawing.

Process checks monitor formed-wall straightness, joint position and edge condition. Inspection also identifies fabrication debris that must be removed before electronic hardware is installed.

Each finished chassis receives an appearance and assembly-fit inspection before packing. Calibrated gauges are used for dimensional checks, and corrective actions are recorded through re-inspection.
