Product Overview

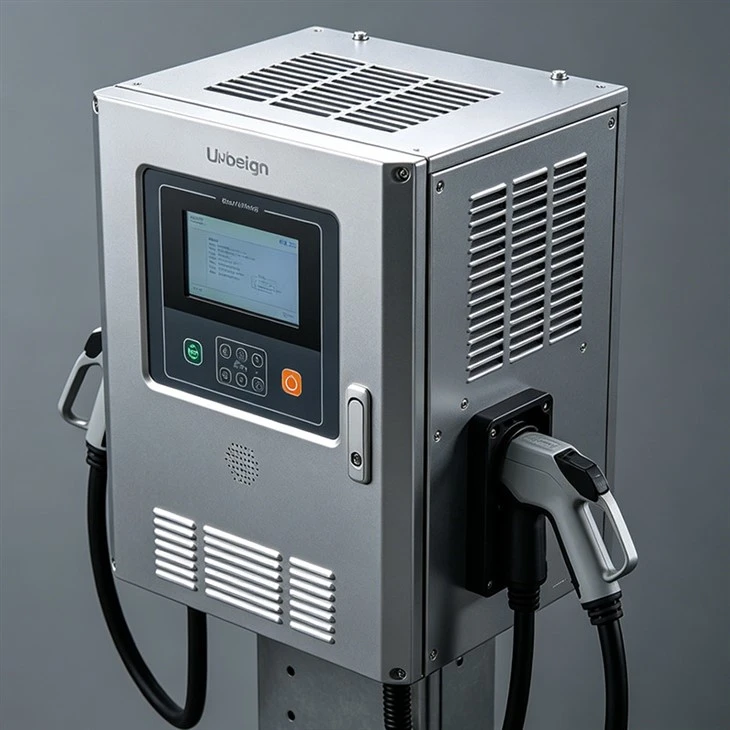

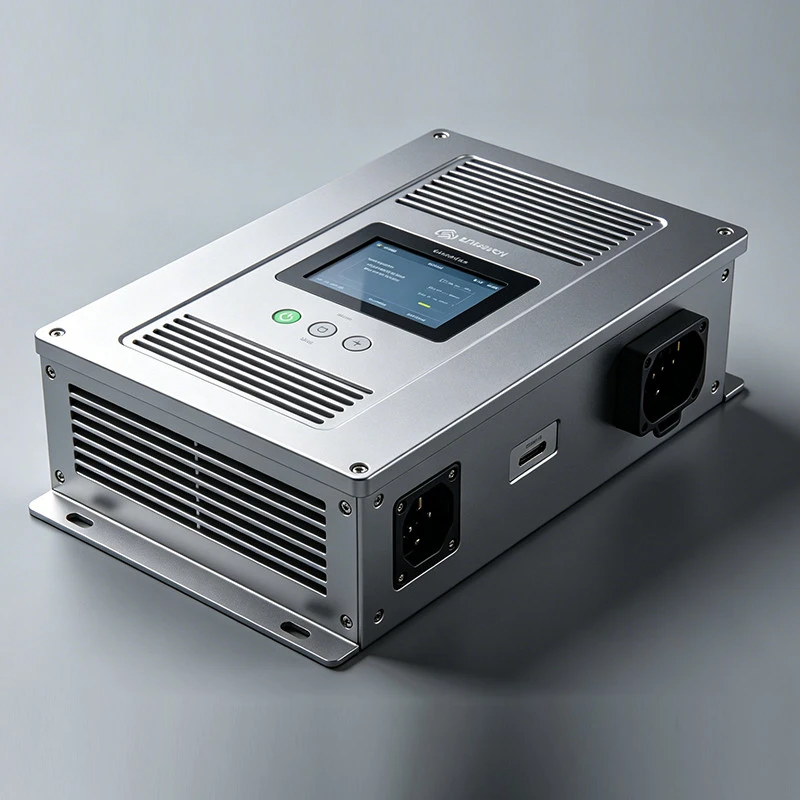

A Charging Pile Control Chassis is the cabinet body for EV charging controls, electrical assemblies and external user interfaces. It is used in charging stations serving commercial parking areas, fleet depots and other electric-vehicle charging installations.

Core Advantages

1.5–2.0 mm Steel for Tall Cabinet Panels
Cold-rolled steel and 304 stainless steel are available in 1.5–2.0 mm thickness. Where full-height doors and side panels span between fixing points, the heavier section reduces panel bending compared with thinner sheet of the same geometry.

Outdoor Powder Coating on Exposed Faces
An outdoor powder-coated finish provides a barrier over steel surfaces exposed to rain and atmospheric moisture. On charging equipment installed in uncovered parking areas, the specified exterior finish protects the cabinet substrate without requiring painting after equipment installation.

Cabinet Envelopes for Multi-Assembly Layouts
Body formats include 600 × 450 × 1500 mm, 720 × 500 × 1700 mm and 800 × 550 × 1900 mm, in width × depth × height. Increasing depth and height provides layout space when separate power and control assemblies occupy the same cabinet.

Technical Data Sheet

Parameter	Specification	Remarks
60kW Single-Gun Size (W×D×H)	600×450×1500mm	Non-standard sizes supported
120kW Dual-Gun Size	720×500×1700mm	Non-standard sizes supported
180/240kW Size	800×550×1900mm	Non-standard sizes supported
Material	Cold-rolled steel, 304 stainless steel	Other materials negotiable
Thickness	1.5–2.0mm	Adjustable
Surface Finish	Outdoor powder coating / galvanized	Anti-corrosion and weather-resistant
Protection Rating	IP54–IP65	Customizable
Warranty	12 months	Free repair for workmanship issues

Custom Charging Pile Control Chassis

We fabricate Charging Pile Control Chassis assemblies to the approved EV charger layout and mechanical drawings. Cutting, bending and welded fabrication produce the specified body and panels for OEM/ODM integration.

Customizable Items

• Screen and payment-module apertures

• Charging-connector holder cutouts

• Internal partition arrangement

• Cable gland-plate geometry

• Service-door opening direction

• Base-anchor pattern

Quality Control

Incoming sheet is checked against the material specification. First-article inspection verifies cabinet squareness, door-to-body alignment and the position of equipment mounting references before continued production.

Process inspections check weld appearance, corner distortion and edge condition. Surface treatment is assessed against the agreed appearance standard, with affected parts reworked and rechecked.

Every cabinet receives a final appearance and assembly-fit inspection before packing. Records are retained for quality follow-up, and customer-appointed third-party factory inspection is accepted.
